MacPass · Boundary Zone · Zn–Pb SEDEX

Unlimited 3D geologic models.
Resource modeling on every one of them. BD·Zn·Pb·Ag

An engine that generates as many equally-valid 3D models of the deposit as needed — every realization honoring the geological constraints and every measured drillhole — and then runs full resource modeling on each one. Surfaces and grades are simulated jointly, with different variogram parameters per stratigraphic layer.

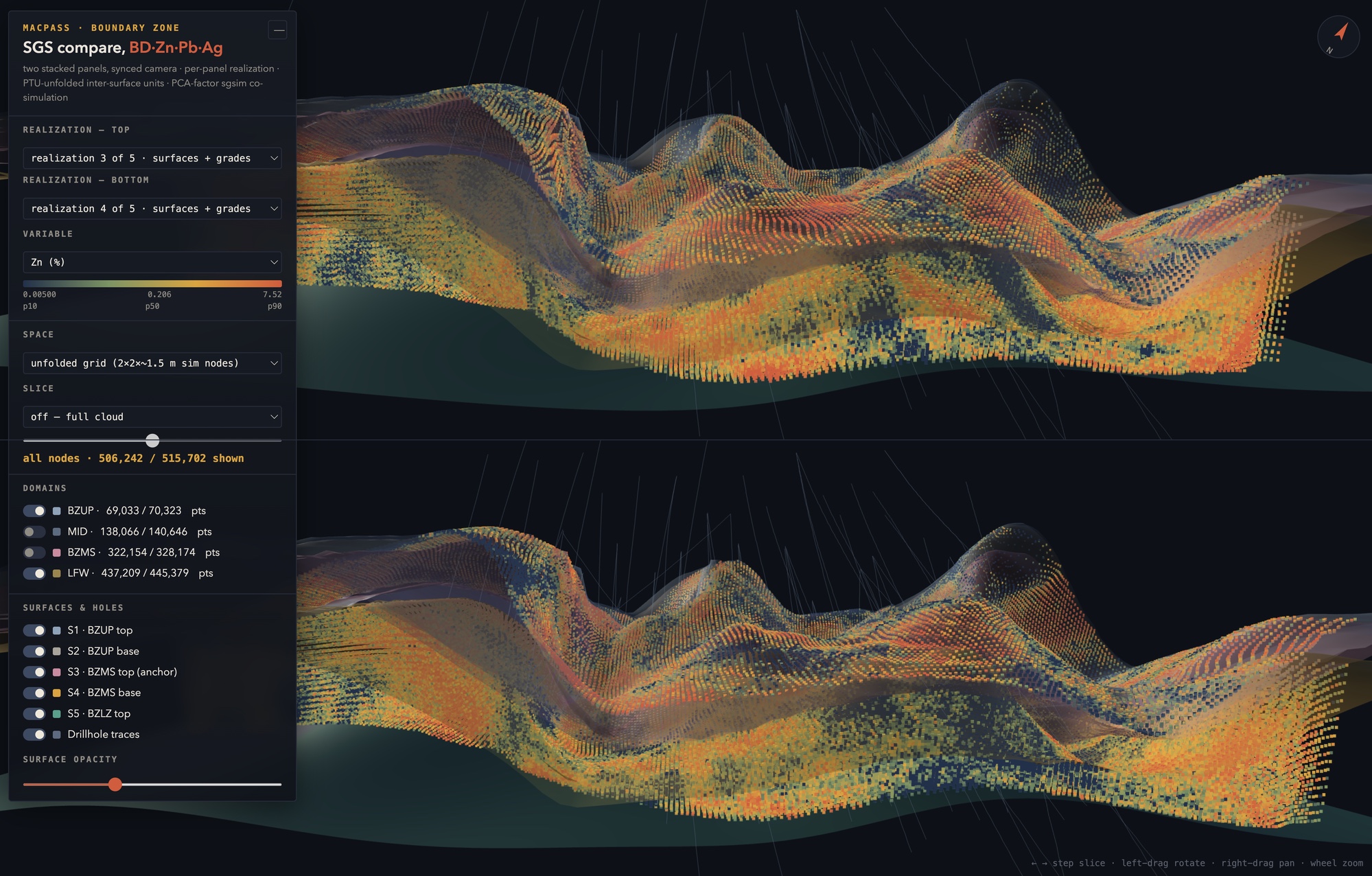

Visualizer · SGS compare · two synced panels, per-panel realization
In-browser 3D visualizer comparing two SGS realizations of the MacPass Boundary zone in stacked panels with a synced camera: folded ore domains colored by Zn grade, geologic surfaces and drillhole traces, with controls for realization, variable, slicing and domains.

PTU-unfolded inter-surface units · PCA-factor SGS co-simulation of BD·Zn·Pb·Ag · five joint surface+grade realizations · 2×2×~1.5 m simulation nodes · domains BZUP / MID / BZMS / LFW

Demo · one engine, every device, all in sync

The visualizer is served from the engine to several devices at once — desktop monitor, laptops, tablet and phone — and they all stay synchronized: rotate, slice or switch realizations on one, and every screen follows in real time.

Deposit
MacPass · Boundary zone Zn·Pb·Ag (SEDEX)
Geometry
Ensemble of 3D models honoring every pick, fold & pinchout
Grades
SGS co-simulation of BD·Zn·Pb·Ag in unfolded space
Delivery
In-browser visualizer, served to any device — all synced
